1968 Ford Escort Mk1 Twin Cam conversion signed by J.M. Latvala

Show ads
Show ads Ford Escort MK1
Show ads flag Greece
Show ads from this seller
logoFord Escort MK1
Seller: Nicolis
Manufacture year: 1968
Location: flagGreece
Price: 58 000
Email: nalexacos@yahoo.com
Phone: +306945159602
Added: 29. 3. 2023 16:40
Views: 864×
Your watchlist:
[You are not logged in]

Year: 1968

Make: Ford

Model: Escort Mk1 Twin Cam conversion

Chassis number: GCATMT50513

Engine number: John Wilcox No. 0492A

Engine specifications: 1594cc, in line 4, DOHC, carburetted by 2 Weber 45 DCOE, 152Ps@6880rpm, 172Nm@5650rpm, wet sump.

Power to weight ratio: 19% (152 / 790)

Homologation: 1968 Mk1 Group 4

Registration: Greek, FIA and HTP passport.

Racing history: This Twin Cam has participated in numerous local historic rallies primarily for exhibition purposes. In June of 2011, Escort expert and WRC champion Jari-Matti Latvala test drove this particular car at a gravel section of the Acropolis track. His ensuing enthusiasm was manifested by placing his signatures at the lateral superior aspect of the doors of the car which have been carefully preserved and are still on display. The year after, J. M. Latvala was officially announced as Ford's No. 1 WRC driver.

Conversion: In 2007 a perfect-bodied 1972 Ford Escort Mk1 1. 1lt was selected as basis to conduct the following upgrades by Greece's foremost rally preparation Ford Escort technicians at Agelakis Service, Nea Erythraia, Attica:

The rust and accident-free body was sandblasted and converted to Group 4 specifications. The steel doors were retained while new steel side fenders and plastic engine and trunk lids were fitted. The entire body was sprayed in original Ford Diamond White and a roll cage by Safety Devices was installed.

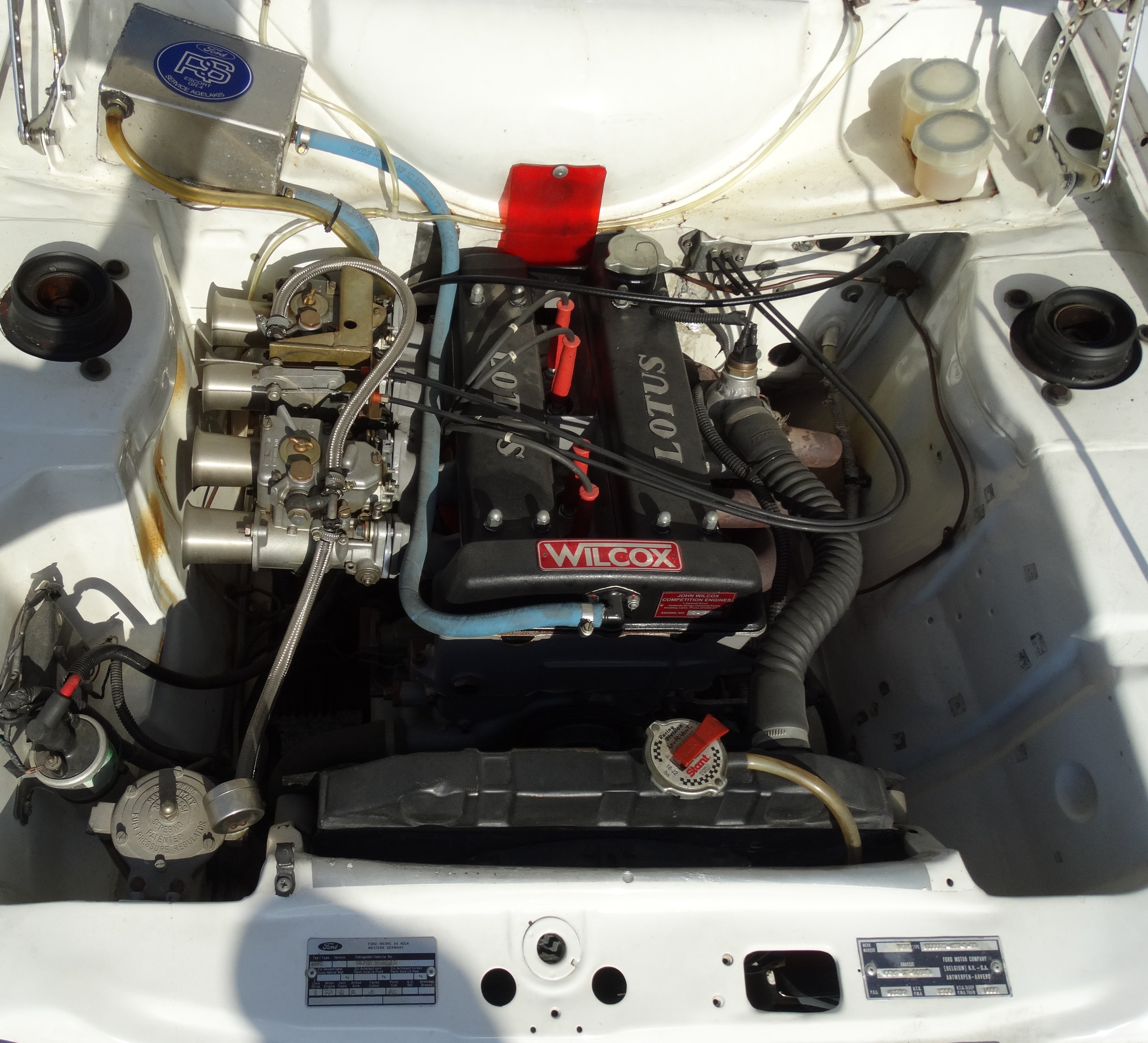

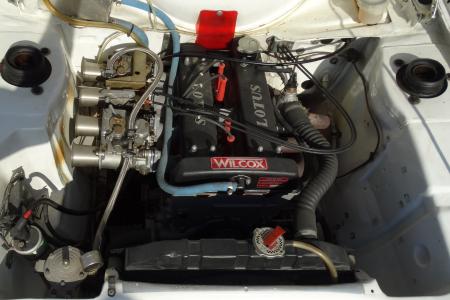

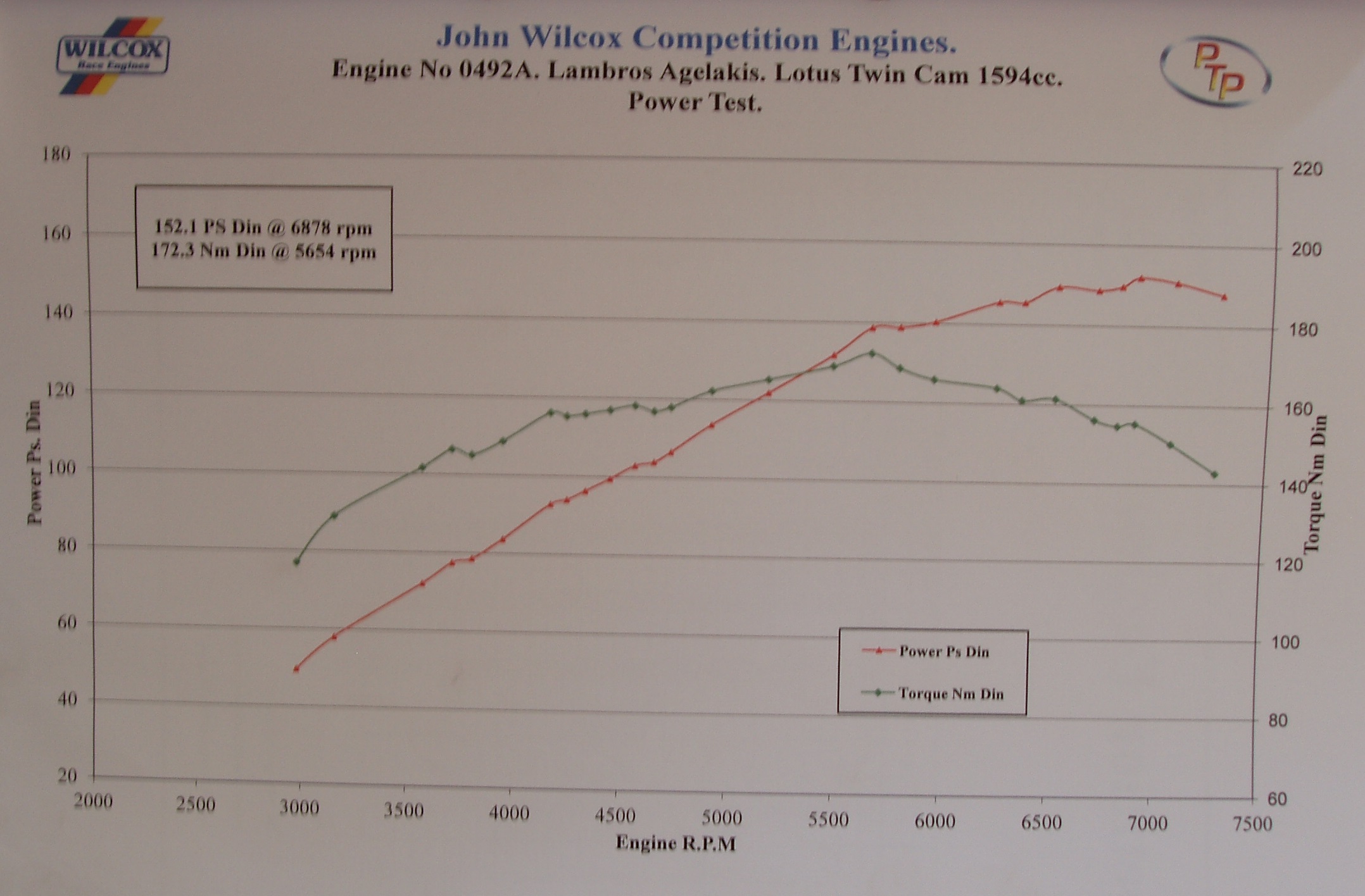

In 2015 this original Lotus Twin Cam 1. 6lt was completely overhauled and ran in by expert John Wilcox at Hinckley, Leicesterchire, UK. This included fitting numerous new parts such as a steel crankshaft, main and big end bearings and bolts, Cosworth piston rings, cylinder bores, cylinder head race springs, camshaft bearings and bucket (L1 cams), gaskets, seals, oil pump, 120 link chain, exhaust valves and guides. The 45 Webers were also overhauled using a service kit and fitted on with new spacers, O rings and mounts. NGK B7ECS spark plugs were selected and oil was replenished for the 4hr run-in session. The camshaft timing, belt's tension, tappets and ignition timing were adjusted for optimal performance providing the following approximate figures (precision graphs available upon request):

rpm  / Power(PS)  / Torque(Nm)
3500   / 70    / 140
4000   / 85    / 150
4500   / 100    / 155
5000   / 115    / 160
5500   / 130    / 170
6000   / 140    / 165
6500   / 150    / 160
7000   / 150    / 155

An FIA-approved and NQA-registered alloy enclosed bag tank by Premier Fuel Systems Ltd was installed. Facet pumps were selected for fuel delivery.

The manifold and exhaust were made by hand.

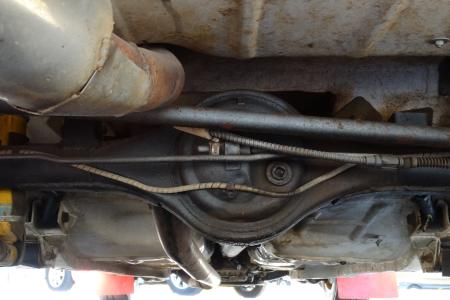

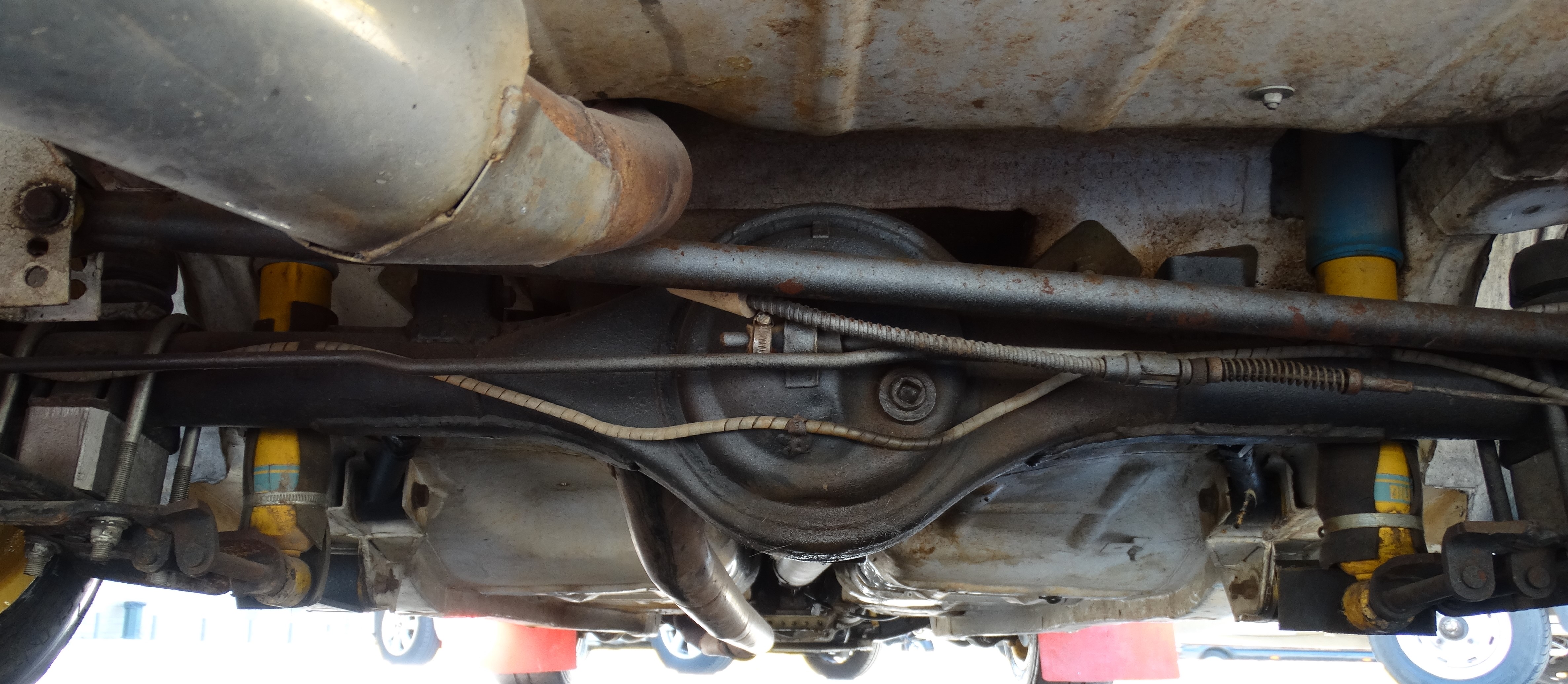

Brand new 4sp gearbox and LSD by Tran-X were matched to deliver through the original Ford Gr 2 spec. rear axle.

Adjustable in the front and set rear shocks by Bilstein were selected.

The brakes are 2 pot caliper discs in the front and drums in the rear.

A set of four plus spare 7x13 inch Compomotive on Toyo tires were fitted with another set of 7x13 inch Mini Lites on Avon tires as spares. Furthermore a set of Michelin spare tires for tarmac use is available.

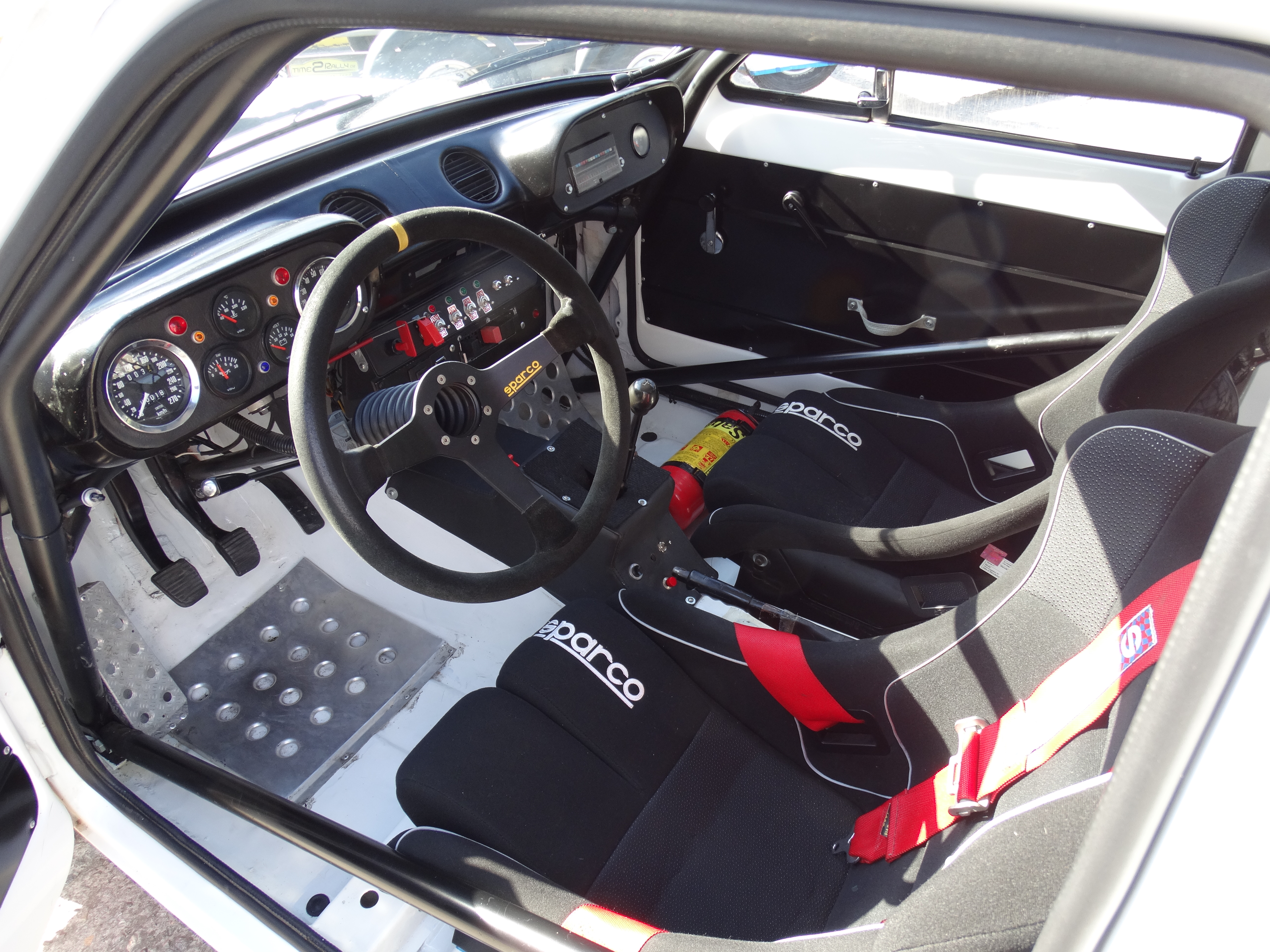

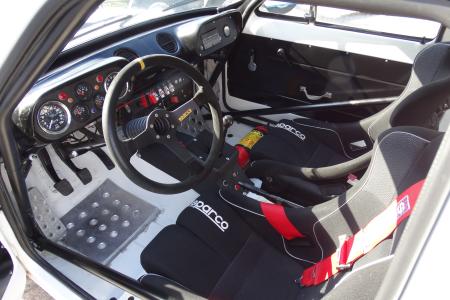

The seats, seat belts and steering wheel are Sparco (seat model Sprint V, driver's expiration date 2021). The VDO and Smith gauges are connected by a lightweight wiring loom to the lightweight gel battery circuit fitted in the rear of the cabin.
All original glass (including roll up rails) is preserved.
